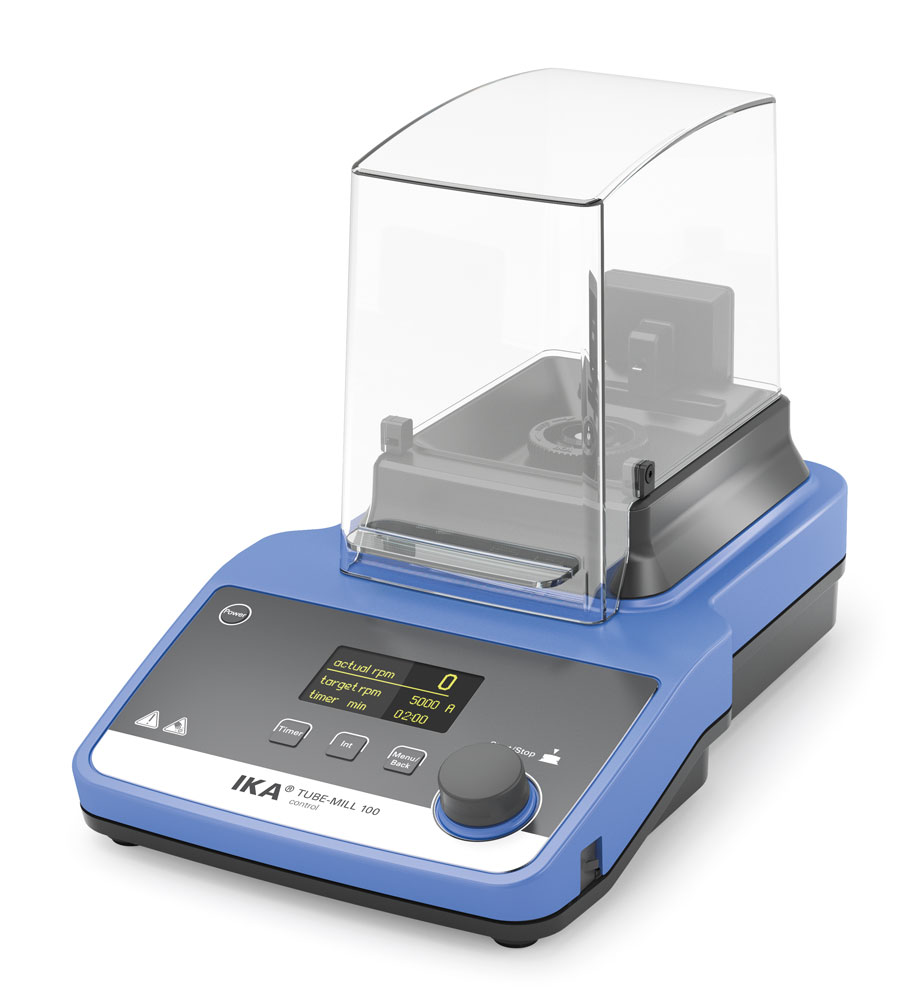

[IKAW20007144] Tube Mill 100 control (IKA)

Product Code: IKAW20007144

The world’s first patented Tube Mill control is a batch mill with disposable grinding chamber. The Tube Mill 100 control accommodates larger grinding chambers with a maximum volume of 100 ml (MT 100) . Eliminates possibility of cross-contamination and the effort of cleaning. The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any time. The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials. It is especially suitable for grinding seeds, such as corn and wheat. During development of the mill, particular emphasis was placed on security. The mill will only start when the hood is closed. When the grinding chamber is not inserted properly or not closed properly, the drive unit will display an error message and the drive will not start. During operation, the grinding chamber cannot be opened. The drive and the grinding chambers are secured with a labyrinth seal. No dust can escape from the chamber or penetrate the drive.
Operating principle: cutting/impact (20014732)
Speed (rpm): 5,000 - 25,000
Dimensions (WxHxD, mm): 180 x 212 x 300
Weight (kg): 2.8
Delivery includes grinding chambers: 1 x MT 40; 1 x MT 100 and 1 x MMT 40
3 Years parts and labour warranty

Please Contact Us For Price
