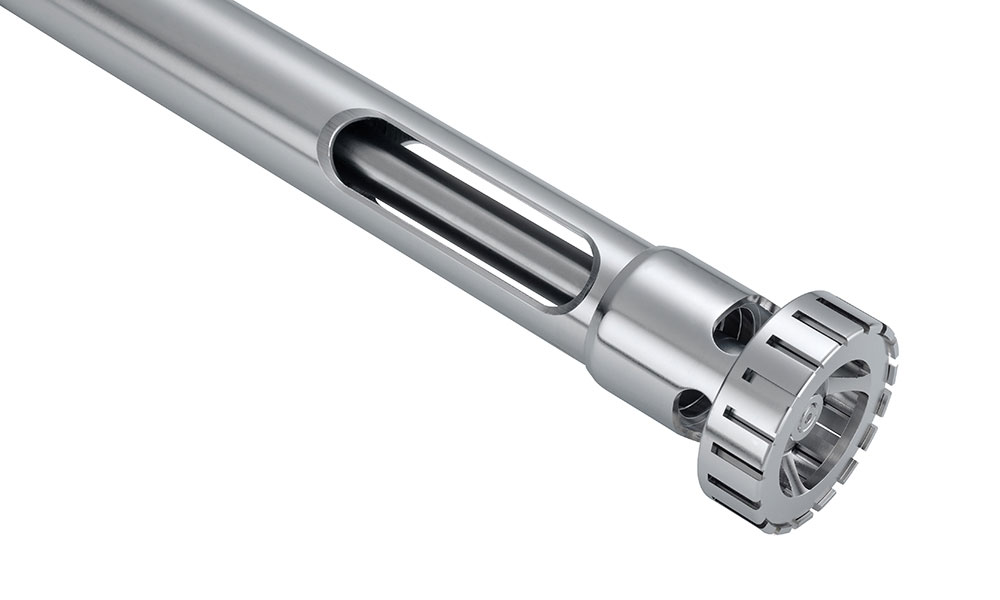

[IKAW8003300] Dispersing element, 45 mm - S 50 N - G 45 G (IKA)

Product Code: IKAW8003300

Volume range min. (H2O) 0.5 l
Volume range max. (H2O) 15 l
Stator diameter 45 mm
Rotor diameter 40.5 mm
Gap between rotor and stator 0.25 mm
Circumferential speed max. 21.2 m/s
Immersion depth min. 70 mm
Immersion depth max. 250 mm
Shaft length 290 mm
Material in contact with medium PTFE, AISI 316L
pH min. 2
pH max. 13
Suitable for solvents yes
Suitable for abrasive substances yes
Working temperature max. 180 °C
Sterilization methods all methods
Ultimate fineness, suspensions min. 25 µm
Ultimate fineness, suspensions max. 50 µm
Ultimate fineness, emulsions min. 5 µm
Ultimate fineness, emulsions max. 20 µm
The variety of media to be processed also requires a variety of rotor-stator configurations and seals. In many cases it is necessary to use subsequently two dispersing elements, for pre-crushing and fine crushing. The plug-in connectors facilitate the exchange of the dispersing elements.

Please Contact Us For Price
