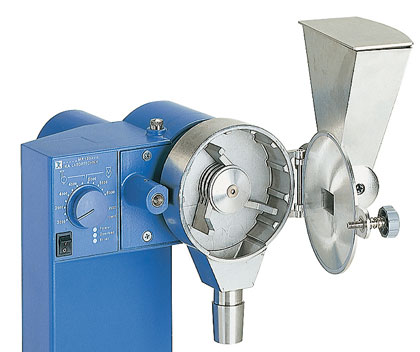

[IKAW2871000] Impact-grinding head - MF 10.2 (IKA)
For crushing brittle, hard materials such as minerals, building materials up to Mohs hardness 6.
Before being discharged, the ground material passes through a sieve. This sieve is interchangeable and available in different hole sizes (not incl. with delivery). The ground material can then be collected using an NS 29 standard ground vessel.
Process type: inline
Circumferential speed maximum: 34 m/s
Feed grain size maximum: 10 mm
Material milling chamber: stainless steel 1.4308
Milling chamber, can be cooled with water: no
Mill feed can be cooled in milling chamber with dry ice: yes
Mill feed can be cooled in milling chamber with liquid nitrogen: no
Dimensions (W x H x D): 320 x 450 x 300 mm
Weight: 2.7 kg
[IKAW2836000] MF 10 basic Microfine grinder drive (IKA)
$ 9,640.07
Product not available
